Modular Mounting System (name TBA im not a marketing wizard)

There are a million suppressor mounting systems out there. Big names in the QD adapter/ mount space such as Keymo and Rearden have produced hundreds of thousands of these devices. many companies offer generics that are compatible, so it seems like a fools errand.

However.

What there aren't are a lot of Neilsen boosters. If you dont know what a booster is, they are basically black-magic that let your Browning action pistol (basically any semiauto handgun) function.

Here's a video from youtube:

https://www.youtube.com/shorts/mNtHA7Bwu4c

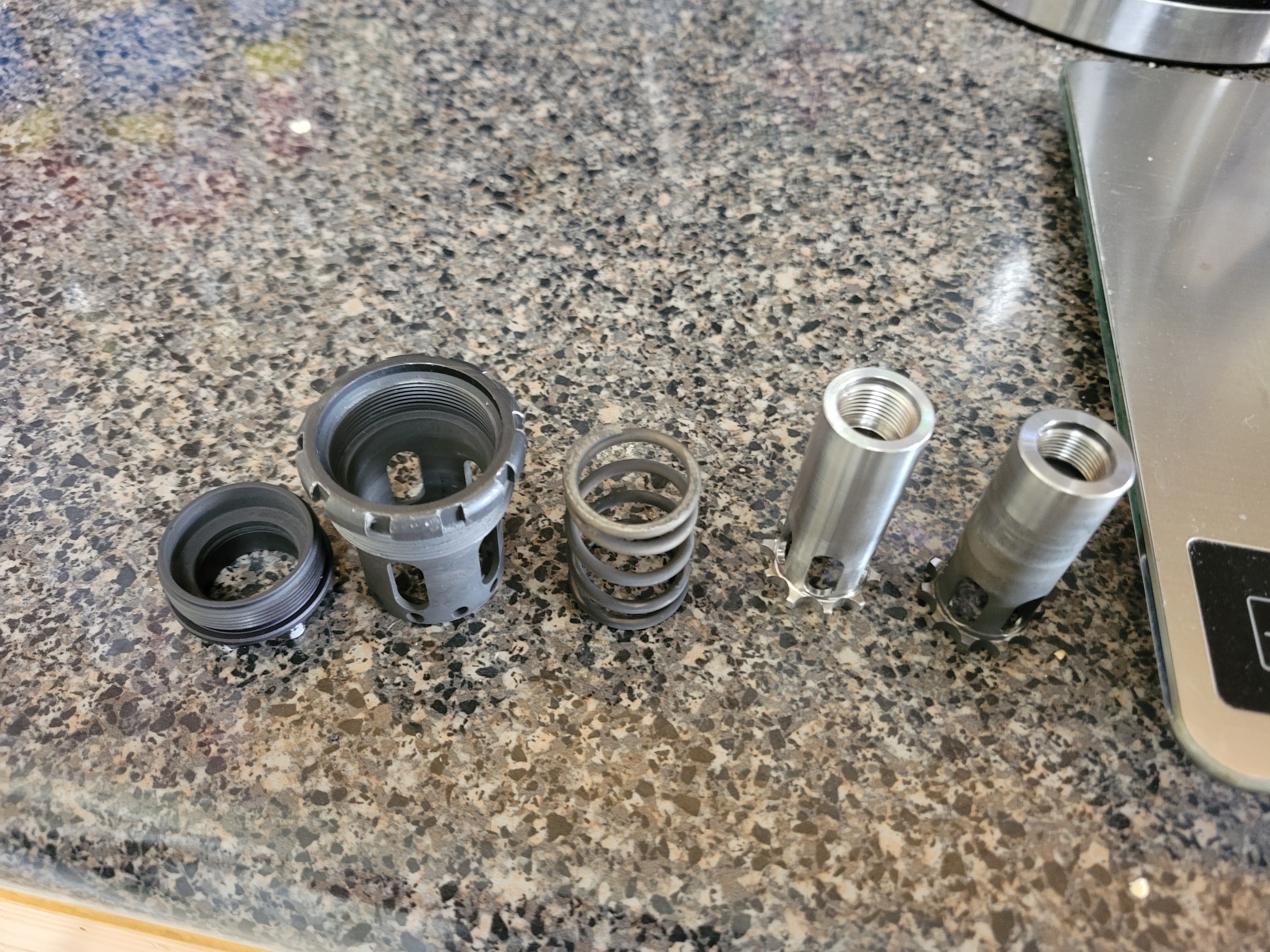

The Neilsen boosters sold by companies such as Griffin and YHM come in four basic pieces:

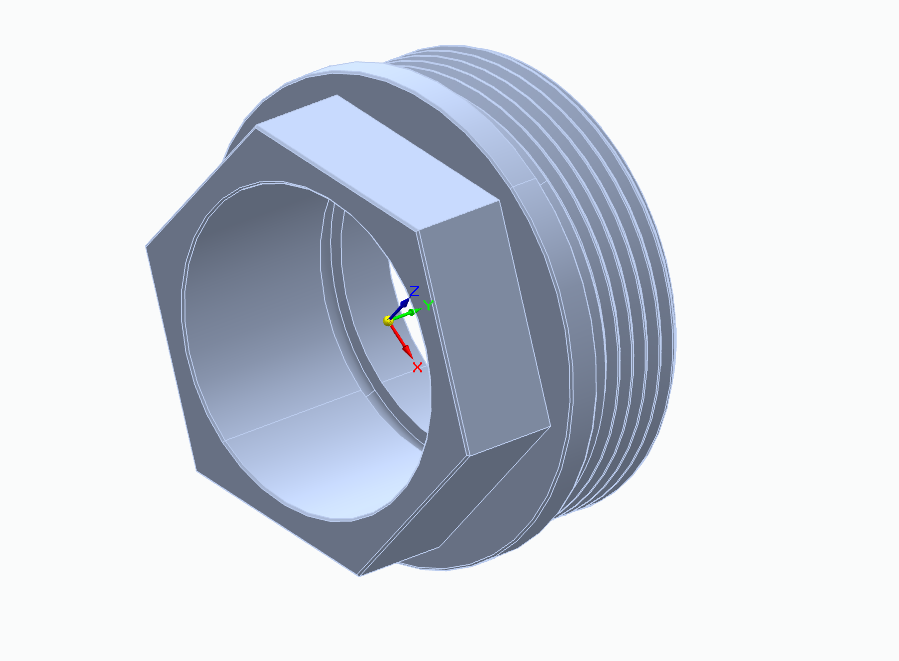

The end cap

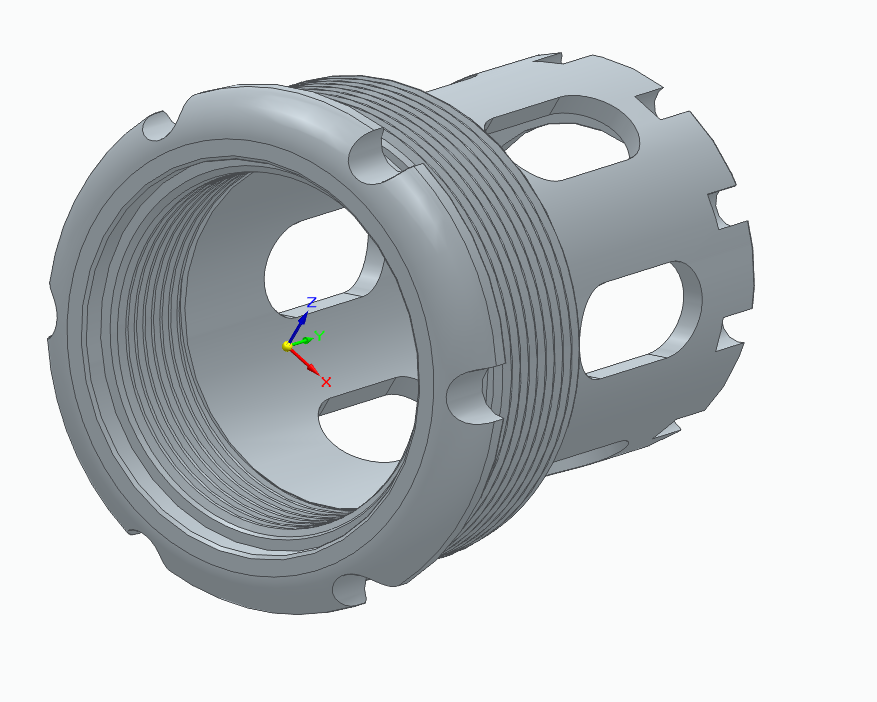

The body or "cage"

the spring

the piston (two shown)

Thats pretty handy, because you can use the same booster across seeveral cans. All you need is a barrel-compatible piston. Not only that, pistons have their own spec now, called "BPISTIN," an acronym which stands for:
Booster Piston, Industry Standard Ten Index Notch. This is handy, because this means that your piston (the part that screws to the barrel) will work across a variety of booster manufactuers.

We set out to develop a HUB-compatible booster a while back because they are in demand and the modularity possible made it an easier risk. One thing that we wanted to make sure happened was that you could move the suppresor (with booster) from a pistol to a PCC with minimal hassle. Q-Rearden does this too: The OD threads on the mount (the muzzle device) match the ID threads on the booster body.

This project comes in several pieces:

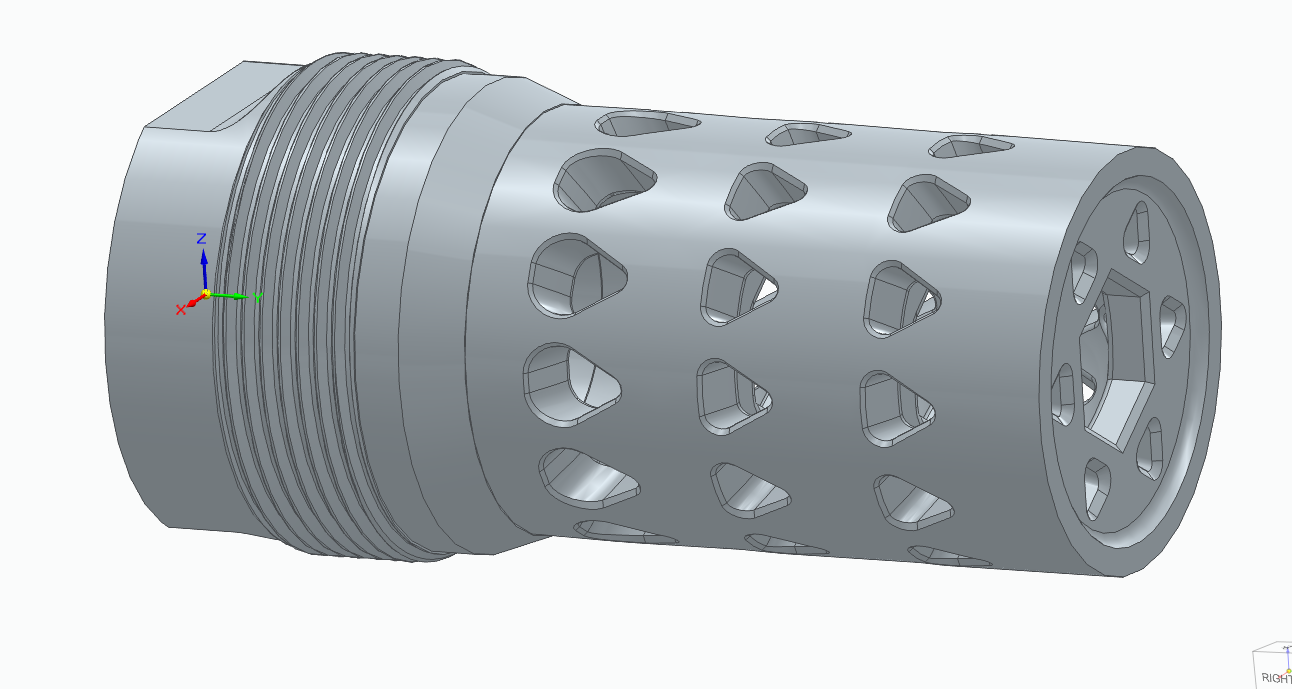

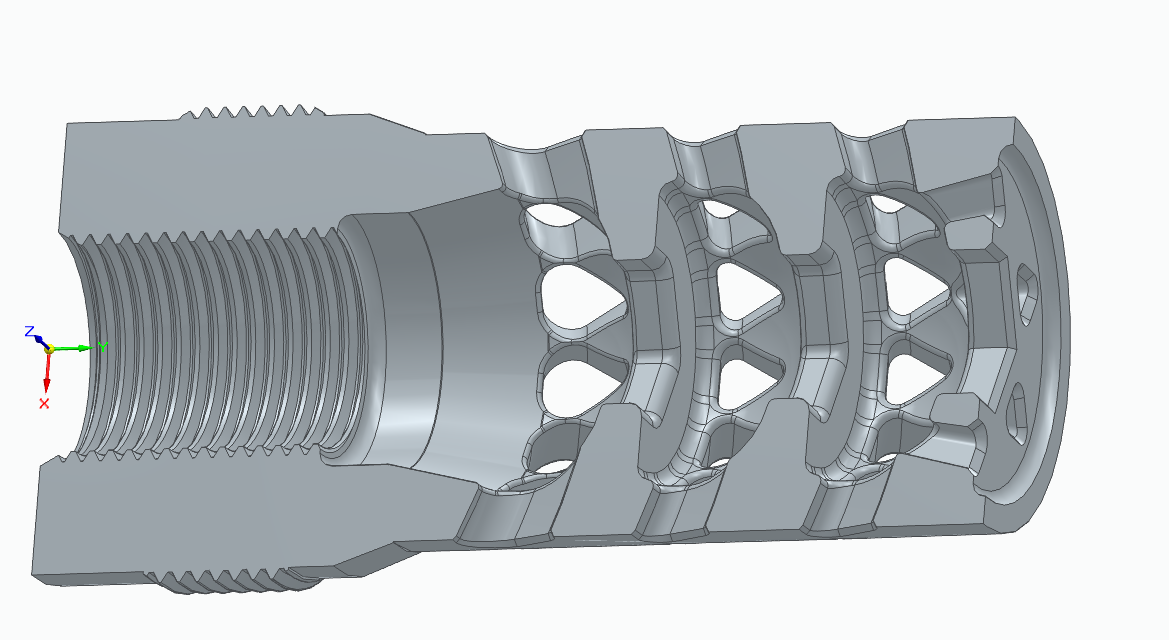

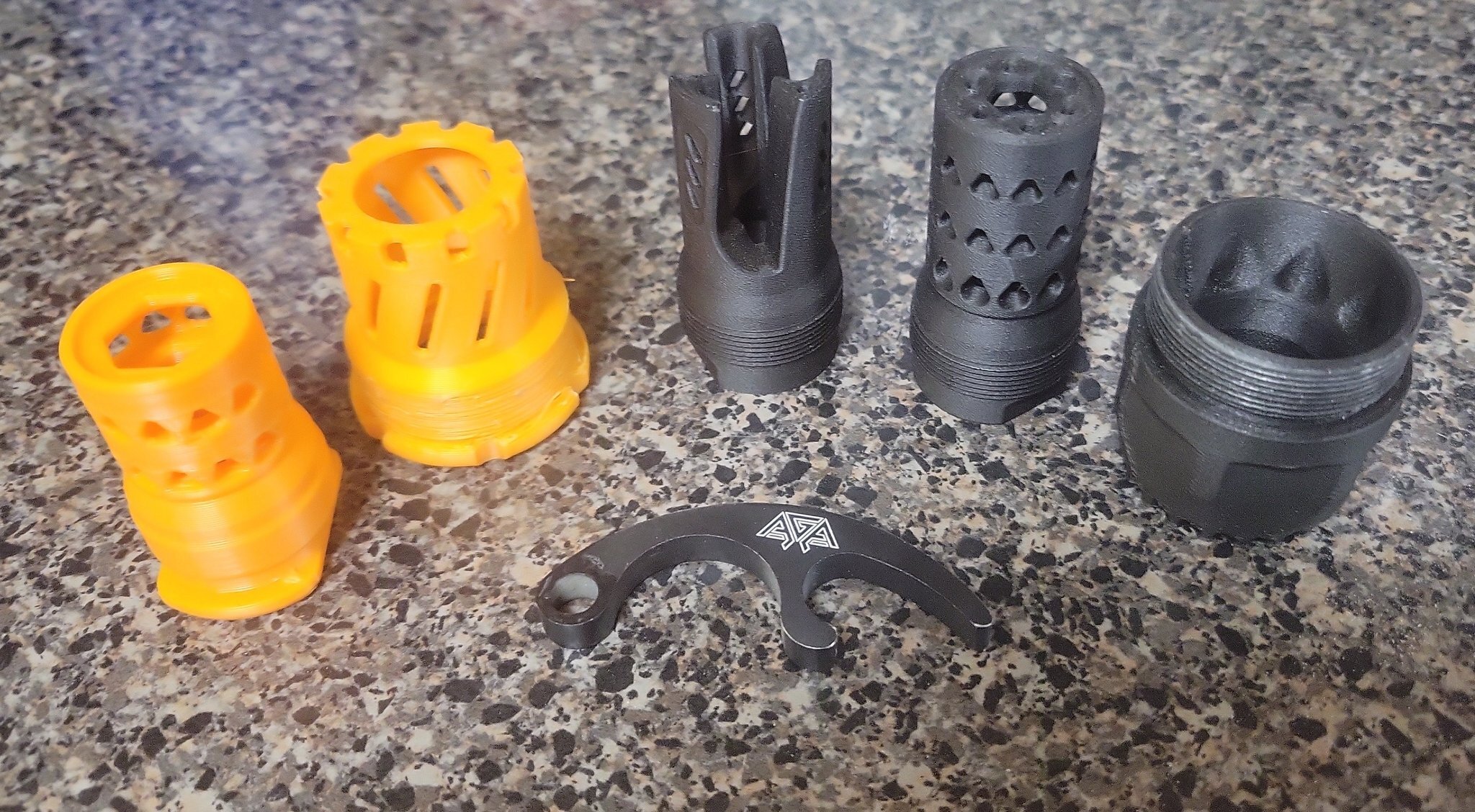

1) The fixed QD taper adapters, S4LT (brake) and Tr1nity (flash hider). We will need to source stainless precursors, develop fixturing (this is already done for 5/8x24) and turn the OD and threads on the NC lathe. The fit of the taper is absolutely critical to ensure proper axial alignment of the suppressor. S4LT and Tr1nity are the two in the middle (below).

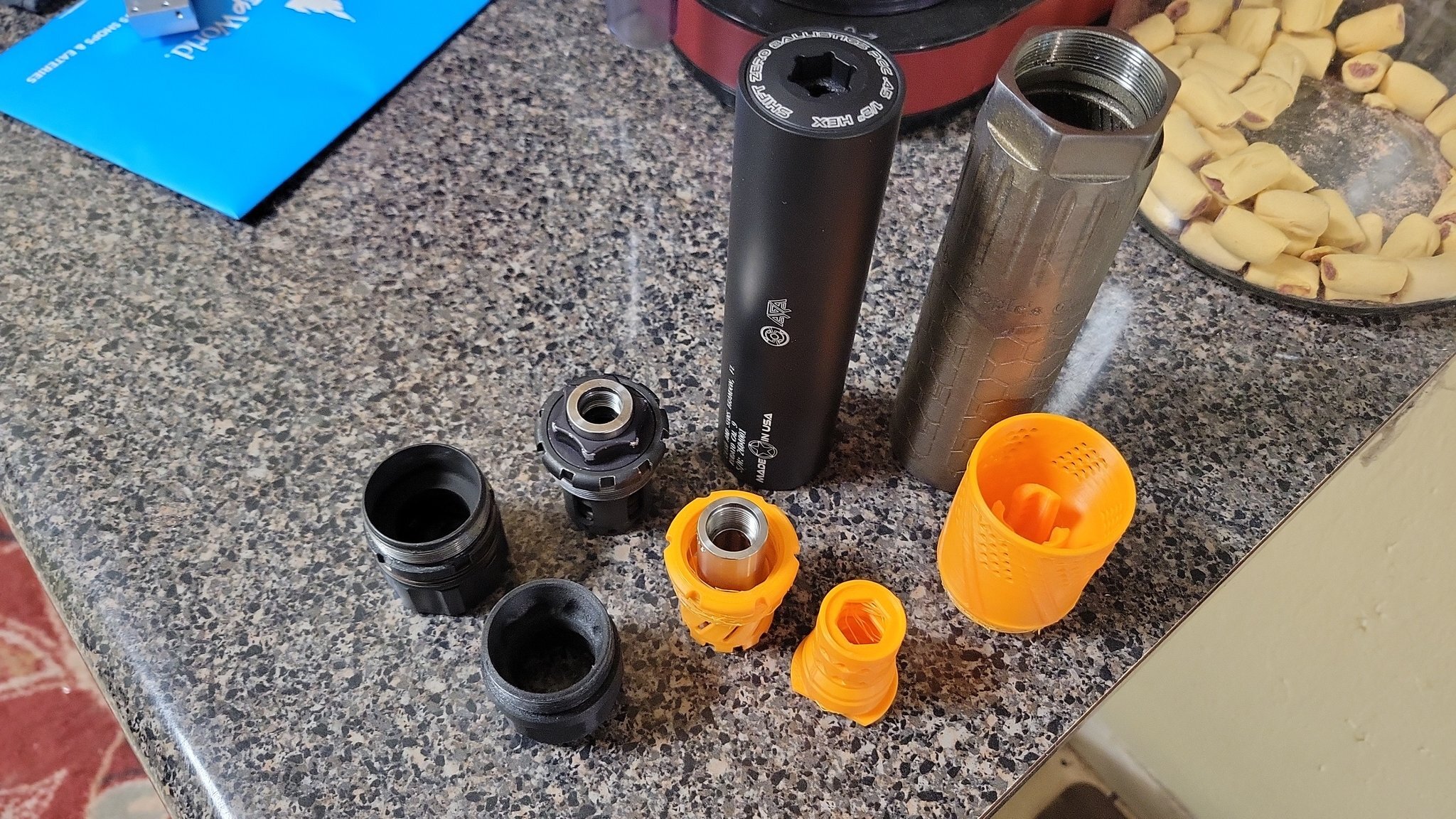

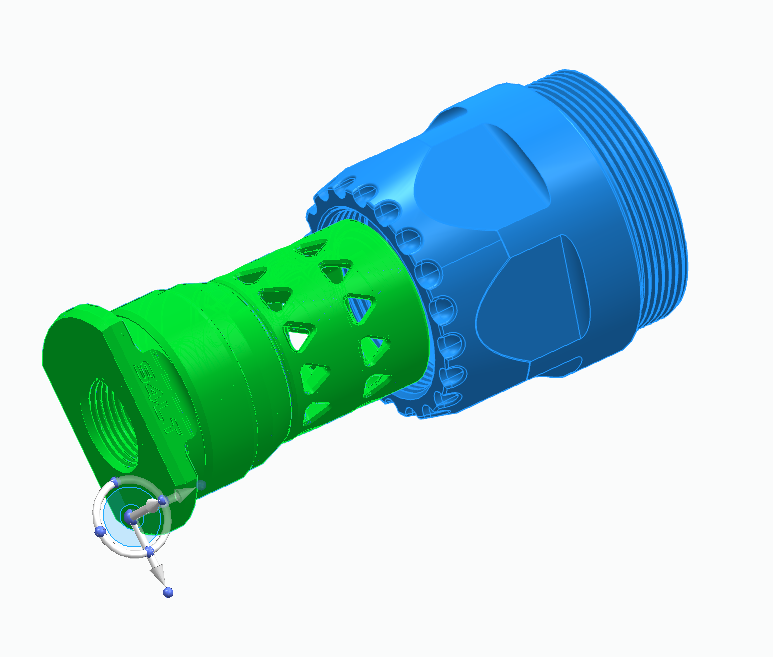

2) The standalone adapter (needs a name) to connect S4LT to a can on your rifle or PCC (its on the far right in the 1st photo and in blue in the 2nd

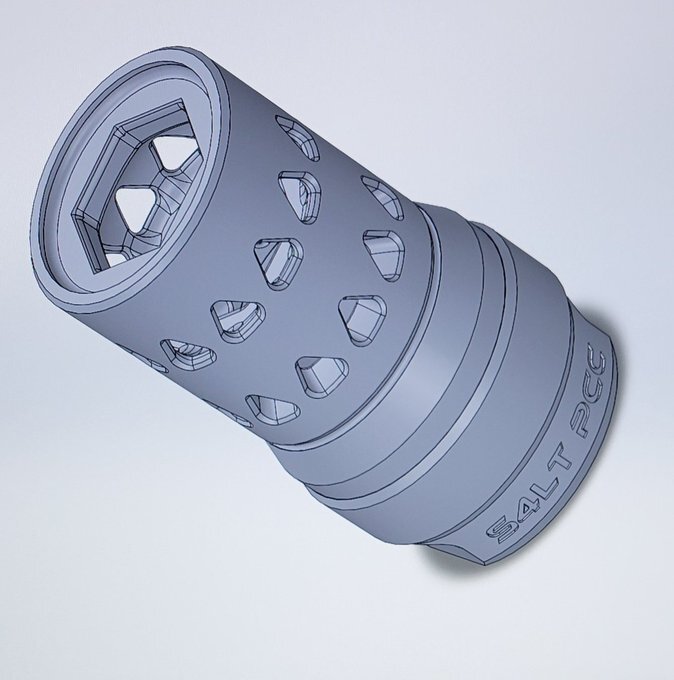

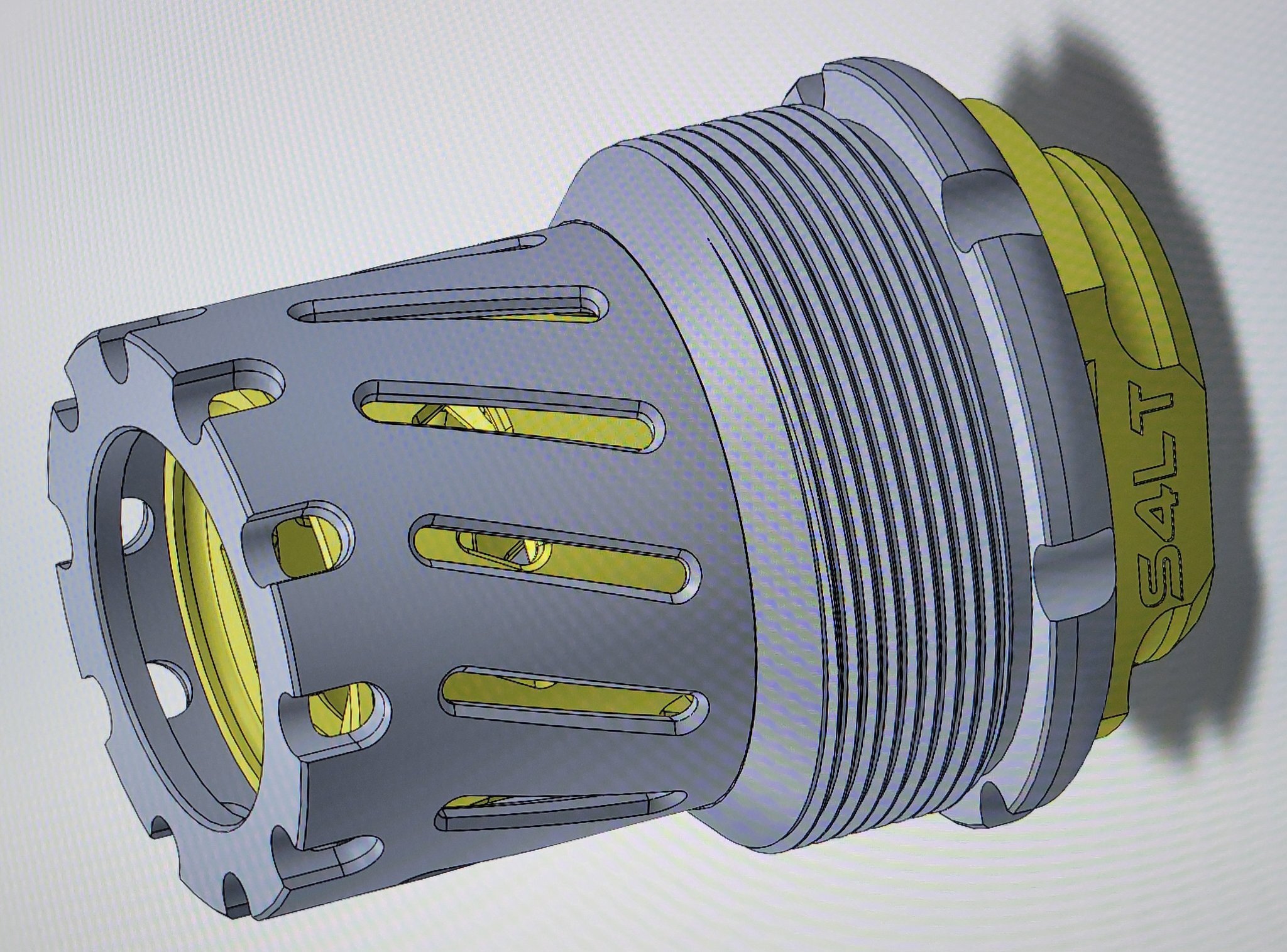

3) The shorty S4LT (far left and in green) is the key to the whole thing. It can move between a fixed system and a booster-equipped pistol can.

This mounting system essentially a fatter Rearden: They have .900" x 24 threads and a 25° taper to a body that measures .800"

We tried that and didnt like the performance from the mount when it was naked.

It was prom all over again.

Volume is what makes most muzzle devices--flash-hiders, comps and cans--work and we wanted more. Accordingly, we went from a 1.050" x 24 thread to a 25° taper to a .900" body.

Using DMLS to form the precursor means that we can do a lot of geometrical magic to improve the perfomance of the un-covered device, so its not just there to hold your can. Yes, it means yet another mounting system, but we think that ours is chonky and cool. We hope that you agree.

Progress:

Theres one slightly modified S4LT on the way to fit my boojie 300 AAC. We'll turn the profile on it and then move immediately to the fixed adapter, which requires a little bit more prep as its threaded ID and out and has the ever-critical mating taper.

How you can help:

The current MSRP for similar items from YHM, Griffin, Rearden, Q et.al.:

Mounts: $75-100

Adapters: $80-120

Neilsen Boosters: $120 minus the piston ($65-75 but we wont be making those)

Special Activities Buy-In:

$50 for the mount (S4LT, Tr1nity Short S4LT), $70 for the adapter, $100 for the booster (cage, cap and spring)

You keep it when were done. List prices will reflect the market so youre looking at 25-35% off if you join up now.
